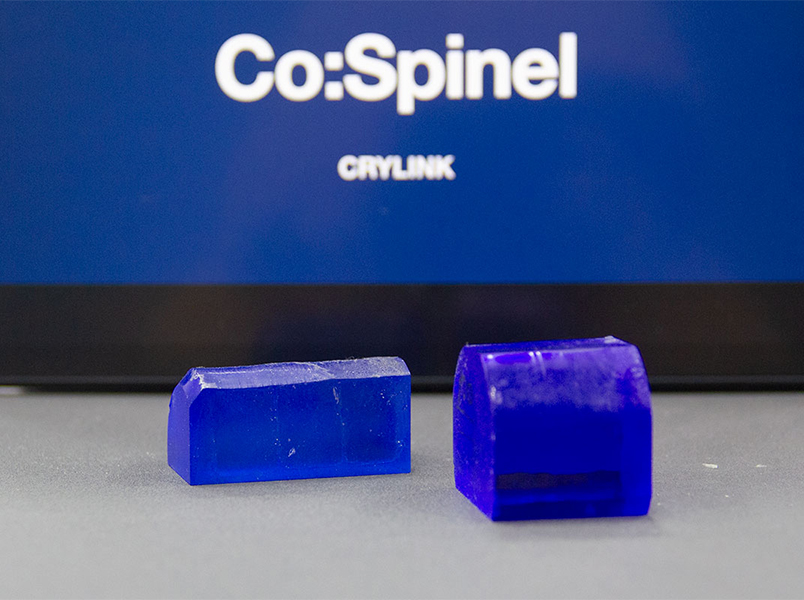

Co Spinel - Laser Crylink

Windows is an optical flat plate that does not change the optical magnification and only affects the optical path in the optical path.

It can be used to guide light into optical systems and isolate dust and water vapor, thereby protecting the internal components of the instrument. As a protective and sealing window for instruments or components, the light window is required to not affect the image quality and accuracy of the system.

Therefore, sometimes it is necessary to have high requirements for transmitted wavefront distortion, high transmittance, and high parallelism.

Inquire Now Next Product

Product Description

Shanghai Optec can provide standard precision and high-precision window slices of various materials according to customers' customized needs, including ZnSe, Ge, Si, CaF2 window slices applied in infrared band...

Product Parameters

	Standard accuracy	High precision
Material	BK7, K9, quartz, sapphire, silicon, germanium, zinc selenide, calcium fluoride, magnesium fluoride, zinc sulfide, lithium fluoride, barium fluoride, etc
Flatness	λ/ 4 @ 632.8nm	λ/ 10 @ 632.8nm
Dimensional tolerance	± 0.1 mm	± 0.03 mm
Thickness tolerance	± 0.2mm	± 0.05mm
Effective aperture	＞ 90%	＞ 90%
Parallelism	<1 '	<10 ″
verticality	<10 '	<10 ″
Angular tolerance	<3 '	<30 ″
Smoothness	40/20	20/10
Chamfer	0.1-0.5mm * 45 °	0.1-0.5mm * 45 °
Coating	According to customer requirements	According to customer requirements
